High Power ▪ Intermediate Frequency ▪ DC output current
Intermediate Frequency Inverter DC Spot (Convex) Welder
DTB-80 DTB-160 DTB-240 DTB-280 DTB-340 DTB-450
Customizable according to requirements
Energy saving, power saving, high efficiency, low operating cost,
and high welding quality.
Product overview: The medium frequency inverter DC spot welding
machine converts the power frequency (50Hz) AC to the medium
frequency (1000Hz) DC output. The time resolution is higher than
that of the power frequency, the control accuracy is also improved,
and the output current is not affected by the change of the
secondary output circuit. It has high thermal efficiency, large
output power rate and better welding quality. Compared with the
traditional power frequency welding machine, inverter medium
frequency DC welding will be efficient and energy-saving. It is a
technological revolution breakthrough in the field of resistance
welding.
Welding material: Aluminum, copper, galvanized sheet, carbon steel,
nikel, tungsten and other metal materials.
Material thickness: < 5mm
Process recommendation: Spot welding
Application industry: Widely used in welding of metal products in
automobile and auto parts manufacturing, new energy power battery,
photoelectric communication, Electric light, compressor, hardware,
furniture, kitchenware and other industries
Product Parameters
Detailed Photos
Product advantages
Features
1. Energy Saving: Compare with using low frequency, it can help to
reduce the consumption of electric energy. The transformer of the
same weight could output more energy. It can also be conveniently
used with the large automatic welding clamp.
2. In a semi-automatic machine, one medium frequency transformer
can replace many low frequency transformers which can help to
reduce the parallel connection in secondary circuit.
3. Improve the power factor, reduce the production cost.
4. Reduce interference in secondary circuit which is in the large
open area: the welding current is direct current. When there is
induction or magnetic material in secondary winding, the welding
will not be affected.
5. More adaptable to the fluctuation of power grid and voltage
drop: a part of the energy has been stored by inverter and been
supplied to load. It replaces the way of power supply to load
directly from the power grid.
6. More precise and fast control of current: Compare with low
frequency system, it is able to analyze more parameters in a more
precise way.
7. The technology of MF system is more traditional and reliable
which can prevent the damage results from the breakdown of silicon
controlled.
8. Reduce operation cost, including saving the energy of each spot
welding and reducing the cycle of welding.
Packaging & Shipping

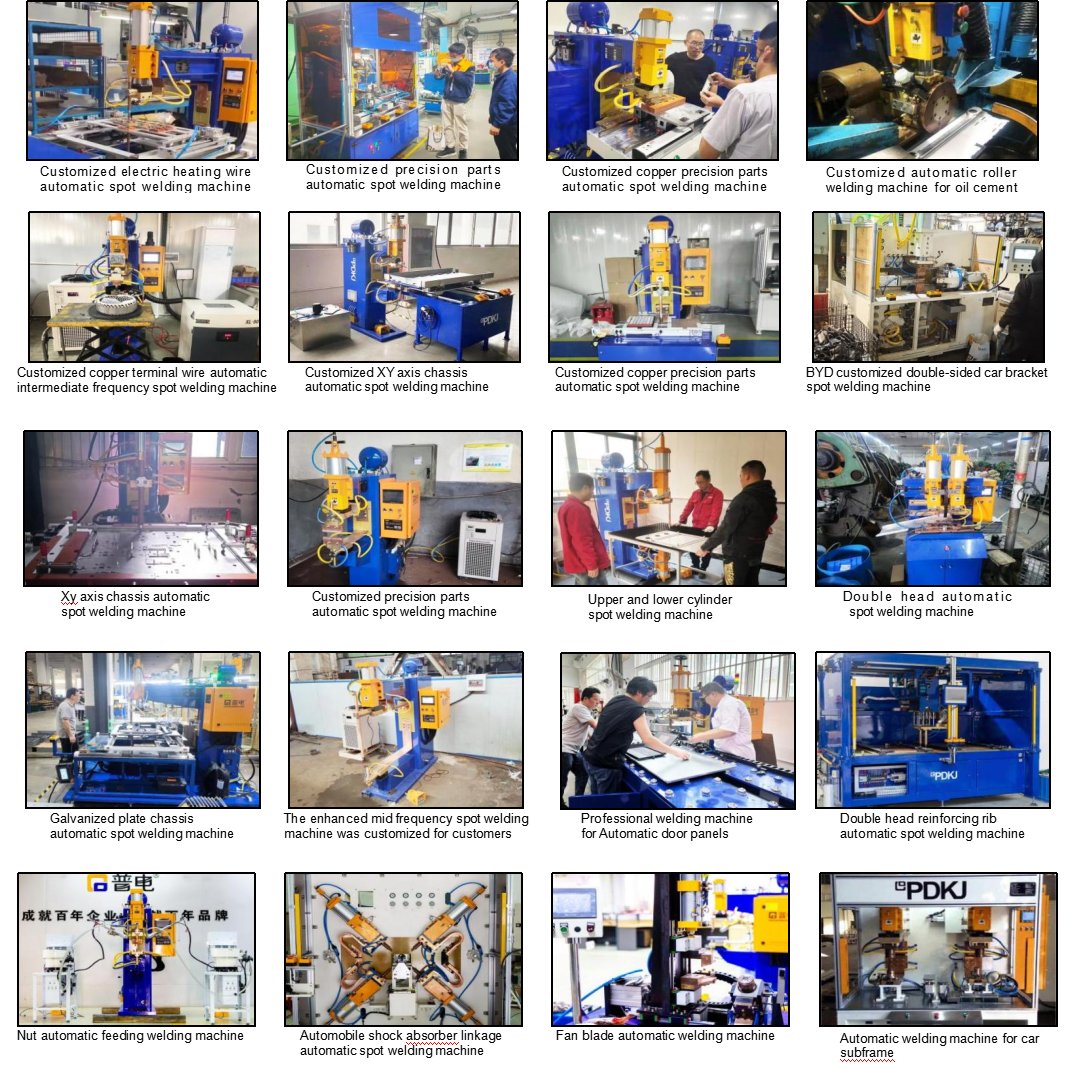

Application
Especially suitable for aluminum, copper, galvanized sheet, carbon
steel, nickel, tungsten and other metal materials and high
temperature enameled wire, flexible connection, inductance coil
welding. It is widely used in the welding of metal products in the
fields of automobile and auto parts manufacturing, new energy power
battery, photoelectric communication, electric light source,
compressor, hardware, furniture, kitchenware, etc. The product has
passed the patent certification of China Intellectual Property
Office, China CCC certification and export CE certification.
Enterprise Advantages
PDKJ, Born for metal welding
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit,
but customized machines should be more than 25 days. We always ship
by air and sea in the mean time.
2. Do you inspect the finished products?
Yes, Each step of production products will be came out inspection
by QC department before shipping.
3. Are you a factory?
Yes, We are a factory, all machine is made by ourselves and we can
provide customize service according to your requirement.
4. How about your transport packing? Is it possible to damage the
machine during the transportation?
We have rich experience on international transportation. All the
packing are extra thickness carton filling with protective PE foam
and waterproof membrane. No damage happened during transportation
until now.
