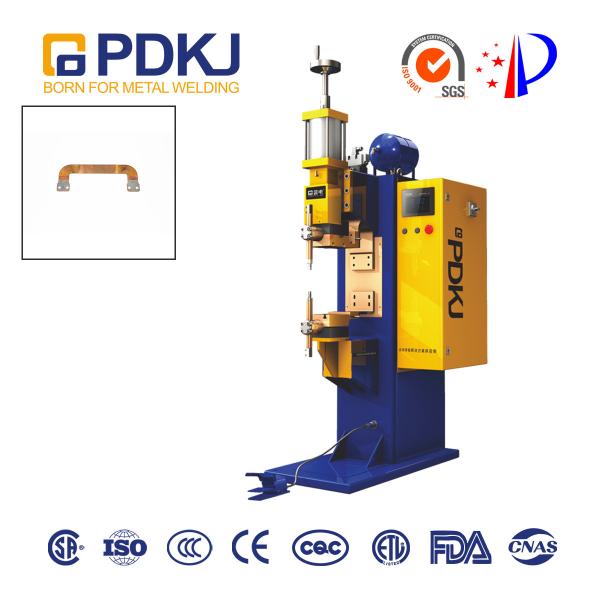

High-power Intermediate-frequency Inverse DC Spot (Projection)
Welding Machine for Copper sheet welding
High-power Intermediate-frequency Inverse DC Spot (Projection)
Welding Machine , Spot Welding Machine projection welding machine
with CE/CCC/ISO certificate
Description:
It is especially suitable for the welding of aluminum, copper,
galvanized sheet, carbon steel, nickel, tungsten and other metal
materials, high temperature enamelled wire, soft connection and
inductance coil. It is widely used in the welding of metal products
in the fields of automobile and auto parts manufacturing, new
energy power battery, photoelectric communication, electric light
source, compressor, hardware, furniture, Kitchenware and so on.
Product selling points: balanced three-phase power input, small
impact of DC output on user's power grid, power saving, energy
saving, stable current and high welding quality.
| Welding material: | copper |
|---|
| Material thickness: | <1mm |
|---|
| Associated product name: | mash welder |
|---|
| Industry: | Metal sheet metal manufacturing industry |
|---|
| Process recommendation: | spot welding |
|---|
Specifications
Feature
01. Three phase AC power input, power balance, high power factor.
02. For the same welding workpiece, the welding time is short, the
power is saved, the welding stability zone is increased, and the
electrode life is increased.
03. It is suitable for welding aluminum, galvanized sheet, high
tension steel, carbon steel and other metal materials with good
welding effect.
04. It is suitable for spot welding and projection welding of
plates, plates and projection welding nuts and studs.
05. The welding quality is stable and firm, with large penetration
and less spatter.
06. During AC output control, the half wave time is adjustable and
2-50ms is programmable.
07. Programmable multiple sets of welding specifications.
08. Three stage heating process: preheating, welding and tempering,
in which the increasing and decreasing sections can be customized
in the welding section.
09. Programmable pressure control, 10 pressure segments can be
defined.
10. Programmable output I / O port: programmable 3-segment output,
which can better adapt to PLC, robot, etc.
11. During unipolar output control, that is, in the process of one
welding cycle, the polarity of current remains unchanged, and the
polarity of two adjacent welding cycles alternates.
Application
Especially suitable for aluminum, copper, galvanized sheet, carbon
steel, nickel, tungsten and other metal materials and high
temperature enameled wire, flexible connection, inductance coil
welding. It is widely used in the welding of metal products in the
fields of automobile and auto parts manufacturing, new energy power
battery, photoelectric communication, electric light source,
compressor, hardware, furniture, kitchenware, etc. The product has
passed the patent certification of China Intellectual Property
Office, China CCC certification and export CE certification
