    Three Phase PW MFDC Spot Welding Machine 240KVA 380V Mash Welder

    Ask Lasest Price
    Brand Name : PDKJ
    Model Number : DTB-280
    Certification : ISO CE SGS
    Price : USD 9250-
    Payment Terms : L/C, T/T
    Supply Ability : 100 set per month
    Delivery Time : 7-25 days
    • Product Details
    • Company Profile

    Three Phase PW MFDC Spot Welding Machine 240KVA 380V Mash Welder

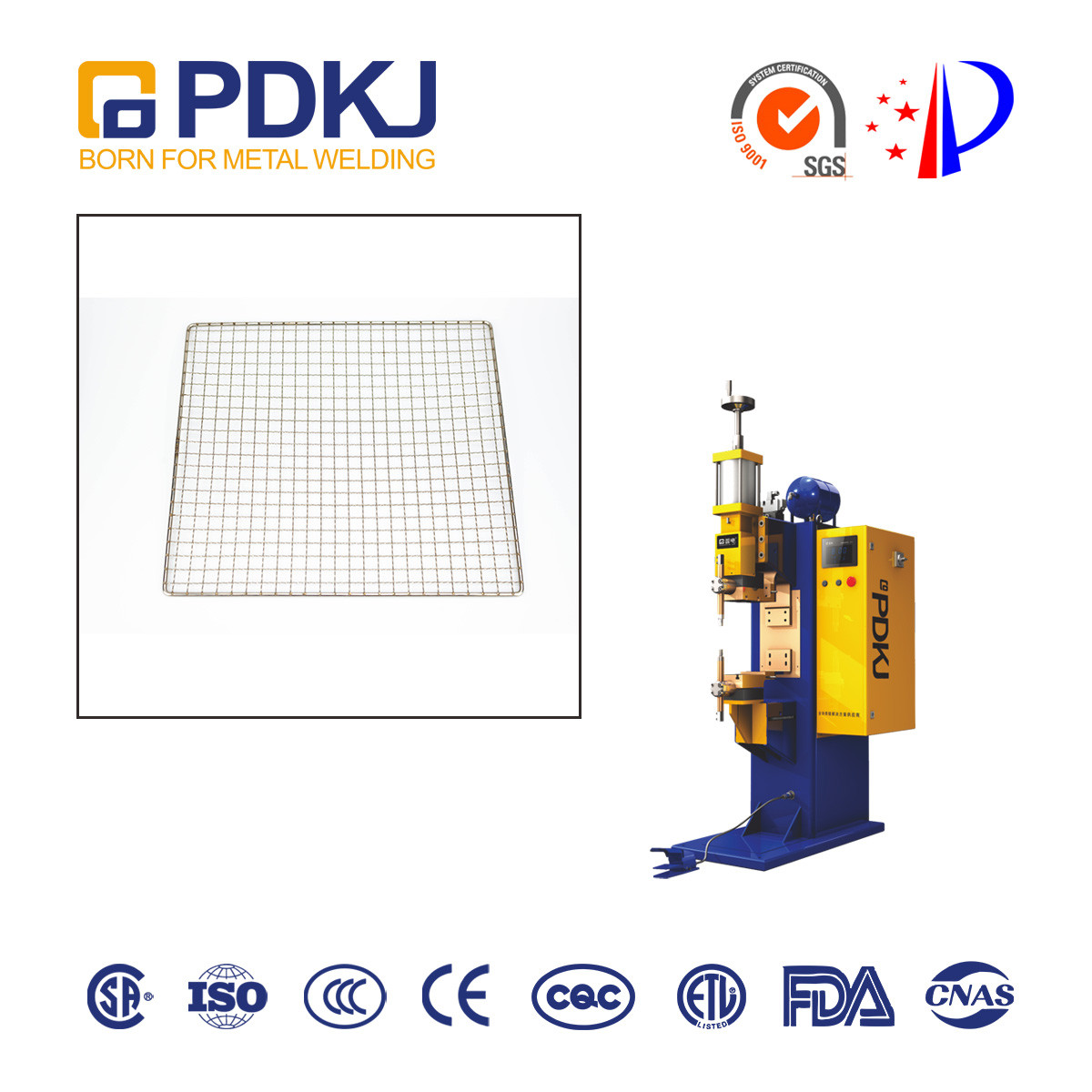

    High-power Intermediate-frequency Inverse DC Spot (Projection) Welding Machine for Barbecue mesh welding

    High-power Intermediate-frequency Inverse DC Spot (Projection) Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
    Description:
    It is especially suitable for the welding of aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials, high temperature enamelled wire, soft connection and inductance coil. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, Kitchenware and so on.


    Product selling points: balanced three-phase power input, small impact of DC output on user's power grid, power saving, energy saving, stable current and high welding quality.


    Welding material:iron
    Material thickness:<1mm
    Associated product name:mash welder
    Industry:Furniture and kitchenware manufacturing industry
    Process recommendation:spot welding

    Three Phase PW MFDC Spot Welding Machine 240KVA 380V Mash Welder
    Specifications



    parameterDTB-280
    Rated capacity240KVA
    Input powerthree φ 380V
    short-circuit current65KA
    Load duration20%
    control modePrimary / secondary constant current
    press12000N
    Electrode stroke100mm
    Cooling water flow14L/min
    Welding capacity / aluminum plate3.5+3.5mm
    Welding capacity / carbon steel4.5+4.5mm
    Electrode arm sizeφ 74x195mm
    Electrode holder sizeφ thirty-one point six × 250mm
    Electrode head sizeφ 20x60mm
    weight820kg
    Overall dimension1205*870*2140mm

    Three Phase PW MFDC Spot Welding Machine 240KVA 380V Mash Welder
    Feature

    01. For the same welding workpiece, the welding time is short, the power is saved, the welding stability zone is increased, and the electrode life is increased.


    02. It is suitable for welding aluminum, galvanized sheet, high tension steel, carbon steel and other metal materials with good welding effect.


    03. It is suitable for spot welding and projection welding of plates, plates and projection welding nuts and studs.


    04. The welding quality is stable and firm, with large penetration and less spatter.


    05. Solder joint counting function.


    06. During AC output control, the half wave time is adjustable and 2-50ms is programmable.


    07. Programmable multiple sets of welding specifications.


    08. Three stage heating process: preheating, welding and tempering, in which the increasing and decreasing sections can be customized in the welding section.


    09. Programmable pressure control, 10 pressure segments can be defined.


    10. Programmable output I / O port: programmable 3-segment output, which can better adapt to PLC, robot, etc.


    11. During unipolar output control, that is, in the process of one welding cycle, the polarity of current remains unchanged, and the polarity of two adjacent welding cycles alternates.


    Three Phase PW MFDC Spot Welding Machine 240KVA 380V Mash Welder

    Application
    Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification



    FAQ

    1. Do you inspect the finished products?
    Yes, Each step of production products will be came out inspection by QC department before shipping.
    2. Are you a factory?
    Yes, We are a factory, all machine is made by ourselves and we can provide customize service according to your requirement.
    3. What does your factory produce?
    We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
    4. How about your transport packing? Is it possible to damage the machine during the transportation?
    We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
