MF DC Crank-Arm Multipoint Sheet Metal Table Spot Welding Machine big Platform type

MF DC Crank-Arm Multipoint Sheet Metal Table Spot Welding Machine

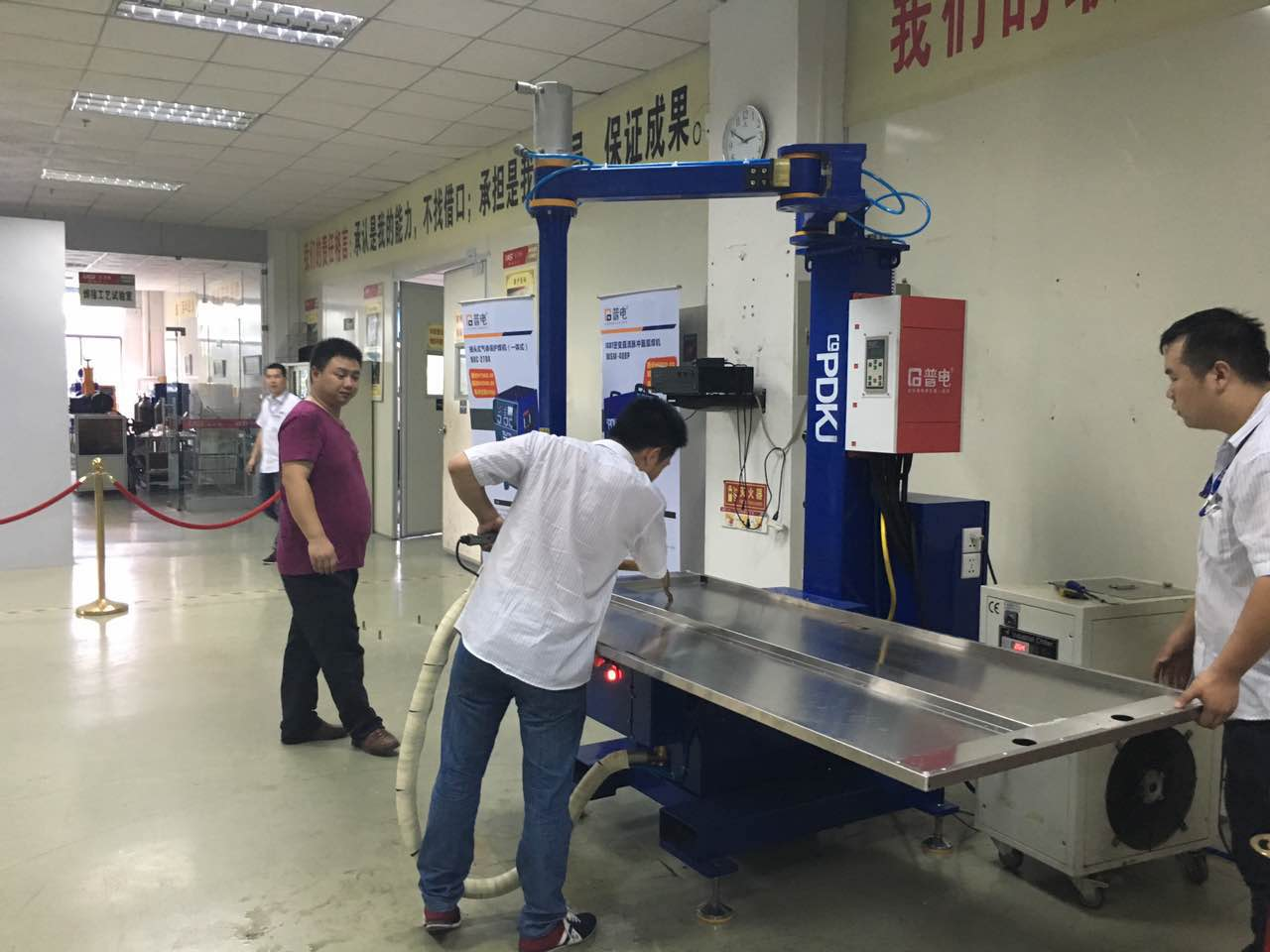

The down electrode is a worktable,the work piece can be placed directly on the table.The surface under welding point is smooth or no welding point,no deformation and no need to polish again.It can be realized the traceless welding and he follow-up treatment processes can be saved, it enhances the efficiency of production and also improve the operating environment. No noise and dust pollution. Welding arm is multi-articulation arm structure which can easily reach evey work point .

Table spot welder is available as H-Gun with horizontal movement, V-Gun with vertical movement and a combination of H-Gun and V-Gun for customer’s needs. Table sizes come standard at (800 mm x 1000 mm) or (1000 mm x 1500 mm). Special orders for custom tables can be customized by requirment

Specification

Product Characteristics:

■The converse welding power supply of intermediate frequency is adopted,which can effectively reduce the consumption of electric energy,welding spatter. The welding quality will be stable and reliable.
■The welding torch can be designed as horizontal or vertical structure, which is easy to reach into the depth of the box for welding,meeting the welding requirements of different directions.
■The welding arm has multi-joint structure, the unique parallel joint structure makes the operation flexible, and the range of welding is larger, which can reach each point on the worktable conveniently.

■ The external surface of solder joints is smooth without solder joints and deformation, there is no need to polish treatment and no dust in the secondary processing. That not only the subsequent processing procedure is saved to improve the work efficiency, and also improves the operation environment, there will be no noise and no dust.
■ Pneumatic pressurization can reduce the labor intensity and obtain the constant spot welding pressure to make sure the welding spot is even. When you are welding some materials like iron cabinet,platform , the external surface will have no welding pits,which improves the welding quality.

■There is a horizontal worktable under the lower electrode , the work piece can be directly placed on the worktable surface.It is easy to operate and use even if you have no special skills or any experience.
■It can make your equipment management convenient, improve the welding quality, improve work efficiency, reduce labor intensity, improve work environment.

APPLICATION

Welding of metal plates, especially good for welding of computer cases, electric control cabinet, office cabinet and automobile metal plates.

After Sale Service

1. All of our machines warranty for more than one year.

2. Our technician can offer free training in our workshop, welcome to visit our factory.

3. Our technicians can offer online training and service directly to you

4. Our technicians can go to site and offering service or training, but need us to share or bear all charges.
